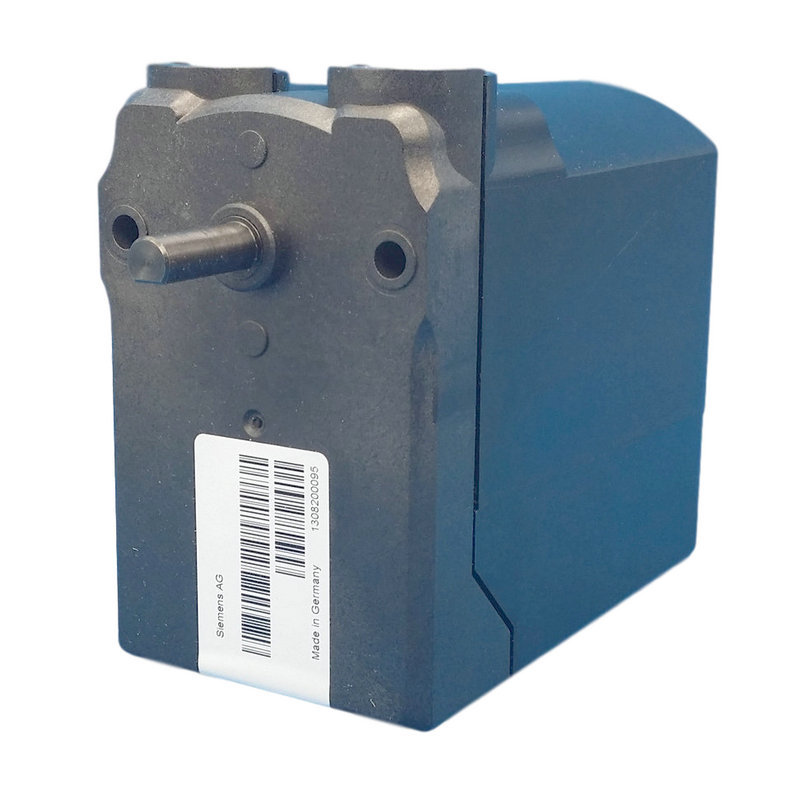

SQN75.624A21B风门执行器
品牌：SIEMENS（西门子）
产地：德国
*此型号为西门子专为瑞典Bentone/百统燃烧器定制
电子式风门执行器SQN7...系列，可用于小型到中型燃烧器的风门控制，或燃油燃烧器和燃气燃烧器的燃料、空气比例控制。
此系列最大扭距2.5 Nm
运行时间：
SQN70... / SQN71... 4 ... 30 s
SQN74... / SQN75... 4 ... 60 s
顺时针或逆时针旋转
带有智能电子单元
可选轴型号

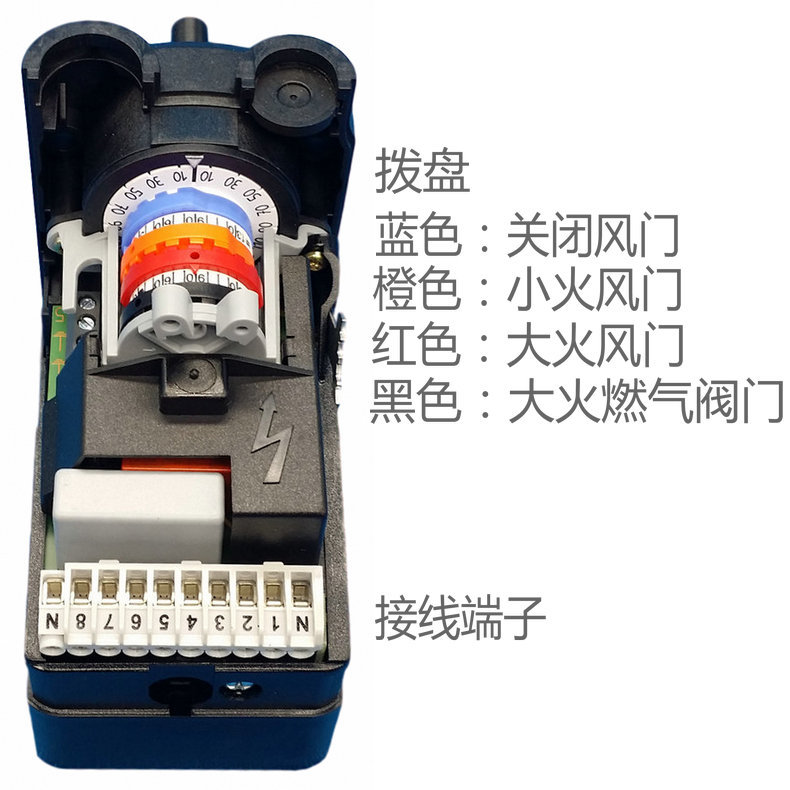

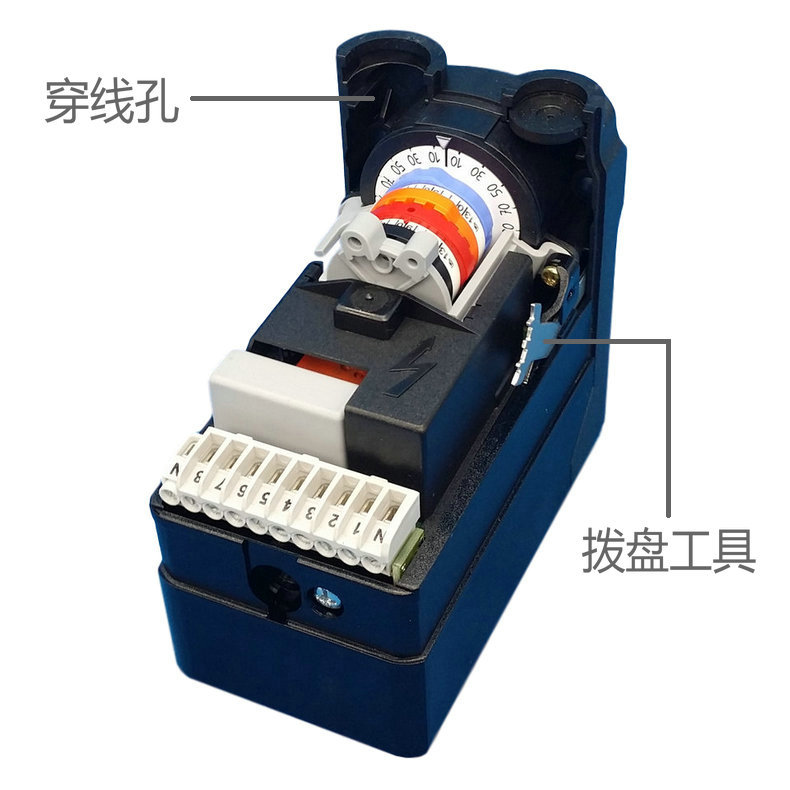

有两个限位和两个继电器; SQN70... / SQN71...的两个和SQN74... / SQN75...中的一个可以精确调节
SQN70... / SQN71...可直接替代SQN30... / SQN31...
| SQN75...系列转向：顺时针 | |||||||
| 接线图 | 轴号 | 90o运行时间 | 常规扭距 | 保持扭距 | 继电器个数 | 外壳长度 |
220V-15%...
240V+10% 50...60Hz |
| No | No | s | Nm | Nm | Pieces | mm | 型号 |
| 4 | 1 | 4 | 1.5 | 0.7 | 3 | 115 | SQN75.244A21B |
| 5 | 1 | 4 | 1.5 | 0.7 | 2 | 115 | SQN75.254A21B |
| 9 | 1 | 4 | 1.5 | 0.7 | 1 | 115 | SQN75.294A21B |
| 3 | 1 | 12 | 2.5 | 1.2 | 2 | 115 | SQN75.436A21B |
| 9 | 1 | 12 | 2.5 | 1.2 | 1 | 115 | SQN75.494A21B |
| 2 | 1 | 30 | 2.5 | 1.3 | 2 | 115 | SQN75.624A21B |
| 6 | 1 | 30 | 2.5 | 1.3 | - | 115 | SQN75.664A21B |
注：高外壳的可以安装电位计
|
|||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
德国SIEMENS西门子风门执行器
SQN30.111A2700 SQN30.121A1700 SQN30.151A1700 SQN30.402A1700
SQN30.102A2700 SQN30.111A2700 SQN30.121A2700 SQN30.151A2700 SQN30.401A2700 SQN30.402A2700
SQN30.401A2730 SQN30.402A2730 SQN30.402A2760
SQN31.101A1700 SQN31.151A1700 SQN31.251A1700 SQN31.401A1700
SQN31.101A2700 SQN31.111A2700 SQN31.121A2700 SQN31.151A2700 SQN31.221A2700 SQN31.251A2700 SQN31.401A2700 SQN31.411A2700
SQN31.121A2730 SON31.151A2730 SQN31.4O1A2730 SQN31.4O1A2730 SQN31.411A2730
SON31.121A2760 SQN31.4O1A2760
SQN70.224A20 SQN70.244A20 SQN70.264A20 SQN70.294A20 SQN70.424A20 SQN70.464A20 SQN70.464A23 SQN70.664A20 SQN70.664A23 SQN70.624A20
SQN71.244A20 SQN71.244A23 SQN71.244A26 SQN71.264A20 SQN71.294A20 SQN71.294A26 SQN71.424A20 SQN71.454A20 SQN71.664A20 SQN71.664A26 SQN71.694A20 SQN71.694A23
Baltur/百得专用> SQN72.2A4A20BT SQN72.6A4A20BT SQN72.4D5A20BT SQN72.6C2A20
SQN75.244A21 SQN75.244A21 SQN75.294A21 SQN75.424A21 SQN75.444A21 SQN75.694A21 SQN75.864A21 SQN75.6K4A21
Bentone/百通专用> SQN75.244A21B SQN75.254A21B SQN75.294A21B SQN75.436A21B SQN75.494A21B SQN75.624A21B SQN75.664A21B
SQN74.244A21 SQN74.244A21 SQN74.294A21 SQN74.424A21 SQN74.444A21 SQN74.694A21 SQN74.864A21
SQN90.140B2799 SQN91.140B2799 SQN90.240B2799 SQN90.220A2799 SQN90.350A2799 SQN90.203A27 SQN90.204A2799
Riello/利雅路专用> SQN90.560A2793 SQN90.240B2793
SQM10.15501 SQM10.16501 SQM10.17501
SQM10.15502 SQM10.16502 SQM10.17502 SQM10.15562 SQM10.16562
SQM20.16501 SQM20.18501 SQM21.16501 SQM21.18501
SQM20.16502 SQM20.18502 SQM21.16502 SQM21.18502
SQM45.291A9 SQM45.295A9 SQM48.497A9 SQM48.697A9
SQM50.381A2 SQM50.383A2 SQM50.424A2Z7 SQM50.481A2 SQM50.481A2Z3 SQM50.681A2 SQM50.482A2 SQM50.381A2Z3
SQM53.481A2 SQM53.581A2 SQM53.489A2
SQM54.480A2 SQM54.481A203 SQM54.481A204 SQM54.482A2 SQM54.482A203 SQM54.482A207 SQM54.482A2Z3 SQM54.487A203 SQM54.580A2
SQM56.687A2 SQM56.687A203 SQM56.687A2Z3
